Slider ​

A Slider renders as a Material slider, in the anatomy it took with Material 3 Expressive: a 16dp track carrying a 4dp handle, rather than a hairline carrying a disc. The figures are the XS size, which is the one that belongs in a form.

Continuous ​

A slider with a filled track and a narrow bar for a handleA slider with a filled track and a narrow bar for a handle
php
use Filament\Forms\Components\Slider;

Slider::make('volume')
    ->range(0, 100)
    ->fillTrack();

The handle holds a 6dp gap on either side, cut through both halves of the track, and narrows while it is being dragged. Where the track runs out, Material's stop indicator marks the end.

Discrete ​

A slider marked at every tenth valueA slider marked at every tenth value
php
use Filament\Forms\Components\Slider\Enums\PipsMode;

Slider::make('rating')
    ->range(0, 100)
    ->step(10)
    ->fillTrack()
    ->tooltips()
    ->pips(PipsMode::Values)
    ->pipsValues([0, 20, 40, 60, 80, 100])
    ->steppedPips();

Value indicator ​

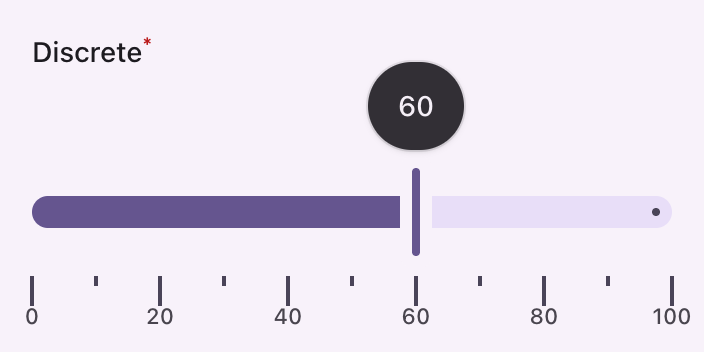

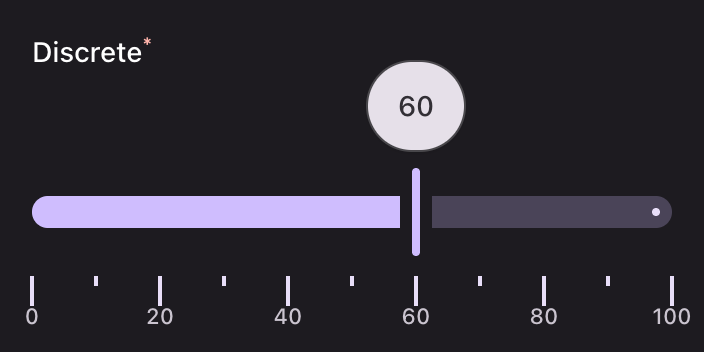

The same slider with the value raised above the handle it belongs toThe same slider with the value raised above the handle it belongs to

tooltips() raises the value while the handle is hovered, dragged or focused from the keyboard, rather than standing over it at rest. It is a container in its own right, 48x44dp on the inverse surface, and it grows out of the handle it belongs to.

Range ​

A slider with two handles and the span between them filledA slider with two handles and the span between them filled
php
Slider::make('price')
    ->range(0, 100)
    ->fillTrack([false, true, false])
    ->minDifference(10)
    ->tooltips();

Vertical ​

A vertical slider with the lower part of the track filledA vertical slider with the lower part of the track filled
php
Slider::make('volume')
    ->range(0, 100)
    ->vertical()
    ->fillTrack();

Stood on end the value grows upward, so the stop indicator moves to the top.

A vertical slider with its steps marked down the sideA vertical slider with its steps marked down the side
A vertical slider with two handles and the span between them filledA vertical slider with two handles and the span between them filled

Notes ​

The gap beside the handle is painted in the surface the slider sits on, which the theme reads from a variable. A slider dropped onto a container of a different tone can say so:

php
Slider::make('volume')->extraAttributes(['style' => '--md-slider-surface: var(--md-sys-color-surface-container-high)']);
